"Water Loss", pond
6/10/08
Hello, I got a question in regards to my 12' X 14' X 4' (deep) Koi pond with
a 4' in length of stream (about 16" wide).&I live in Southern California, and is
it unusual to lose about an inch of water over 24 hours period given my set
up/weather here?
<Mmm, such amounts can be due to "simple" evaporation... given low humidity,
high/er temperature, wind...>
&Please let me know.&I've looked around the pond trying to detect any possible
leak and I've yet to see any evidence of that.
<There are companies who specialize in detecting such leaks... If this amount of
water loss is prohibitive (we live in San Diego... so know the cost of water) or
a concern in terms of not knowing where it's getting off to... perhaps damaging
someone's property... I would look in the Yellow Pages (see Swimming Pools...
repairs), and call a co. re. Bob Fenner>
Rectorseal Epoxy in
Ponds/Aquariums – 01/31/08
Bob,
<<EricR here tonight>>
Do you happen to know if Rectorseal EP-200 Epoxy Putty is safe for use in ponds
etc?
<<It is>>
I need to seal an outlet from a home-made filter and this is all I could find
locally.
<<I have used Rectorseal EP-400 for years in my reef tank with no deleterious
effect. I believe the difference between the -200 and -400 designations is the
size of the container (2oz vs. 4oz)>>
Cheers for any help!
Tom
<<Happy to assist. Eric Russell>>
Reconstructing old concrete
ponds 12/16/07
Hi, Bob and company,
<Sarita>
The project in question is an 80 year old meditation garden with several small
(10' - 20' widths) ponds and a stream bed, all with cracked concrete. A recent
attempt was made at fixing them by simply covering the old concrete with pond
liner, but not the good EPDM rubber liner ~ rather the much stiffer, wrinkle
ridden polyethylene liner.
<Neither attractive nor lasting>
This has resulted in an aesthetic challenge, among other problems. Tons of head
size and slightly larger stones have been piled along the edges to cover the
liner with questionable results.
<... and a maintenance nightmare>
My redesign involves removing the small stones and bringing in big boulders
(that exist on the property ~ they are fortunate to have an amazing supply of
natural boulders and stone!) . In the process, I will need to bust the concrete
out at least around the edges of the ponds and stream bed in order to
accommodate the boulders in a naturalistic way (digging them partly into the
stream banks).
<Mmm, yes...>
I would like to save the owners some money in redoing the work.
Where possible, it would be economical to reuse the lining which they already
spent a good deal on.
<Not likely... they and you would be better off starting new... removing the
existing, breaking the edge and making "islands" where you intend to mount the
new large rock, laying in a new liner with mesh, shotcreting all, placing the
boulders, mortaring in around these... with the liner higher than water level
behind... all within the basin...>
I have some questions:
I will be mortaring my stonework and am considering using mortar to cover any
exposed liner (with a Quickrete colorant to simulate the stone/local soil color)
and will use an acrylic strengthener. Will that be enough over the poly lining?
What thickness do you recommend?
<20 mil plus>
Should I paint the liner with a cement glue first?
<No... no advantage>
Mold aviary wire over the liner surface?
<Yes... or stucco, chicken... wire>
How about adding fiber mesh to the mix?
<If there's money in the budget, this won't hurt... I'd rather spend the money
on better and more (plasticized) cement>
This is at an elevation that typically has +25° lowest winter temps, 100+ summer
highs. I believe soil heaving is mitigated by the many tree roots of the
surrounding forest, but I would like any advice you have on mortaring for cold
weather, and mortaring over liner, especially as I intend (though not by
preference!) to re-use the poly liner for the water containment.
<Mmm... is the feature to be drained, water-less during the freezing weather? If
not, I would not be concerned especially... Again, I would plan on replacing the
existing liner... it is VERY likely perforated, will suffer further piercings
with the new work... I would remove it rather than lay over the new one... Butyl
would be best...>
Thanks so much for your website! Contribution forthcoming!
Sarita
<Yay! Be chatting, Bob Fenner>
Re-install Large Pond In Clay
Soil, Pond Near House Re Installed After Collapse 11/15/07
Dear Crew. Put in 4' deep x 8' wide x 33' long Koi pond about 3 years ago.
< Wow, that is a really big pond.>
Concrete block mortared together for side walls. In bottom we put 2" sand, then
underlayment of carpet backing, then EDPM vinyl liner. We included a large
biological waterfall (using a 150 gallon rubber water tank filled with filtering
materials).
The pond lays 4' from the house and stretches along the length of the front
sideway between the house and the sidewalk.
The soil here is clay and develops very deep wide crevices during the heat of
summer.
< A typical expansive clay.>
About a year and half ago we drained the pond because our house foundation fell.
We had a contractor put concrete piers along the perimeter to re-level. We don't
know if the pond had anything to do with it, but don't believe it did, although
we continually had quite a bit of water loss that we feel was the waterfall.
<The house fell for a reason. The piers transfer the load of the foundation from
your house down past any influence from the pond. Hopefully the soil there is
much stiffer.>
In the meantime our two gorgeous Koi have been living in 150 gallon tank, and we
want to go ahead and re-install the pond, but want to take extra precautions
against any possible leaks as it is so close to the house.
Do we need to do anything extra than your suggestions of liner, then concrete,
etc.? My plan is to keep the old liner in (although not trustworthy as
re-modeling materials during structure tear down were thrown into it), go ahead
and put a new liner in and proceed from there.
Also, we have decided to bring the pond up to a 2' depth and need advice as to
what material would be best to do this......just dirt or what about pea
gravel......or sand?? This would go over the old liner, and then we would
continue per your site instructions.....
Sorry to be so lengthy but would appreciate any thoughts before we do this.
Thanks Darla McLeroy
<Any material that you use to bring up the pond bottom needs to be compacted to
prevent differential settlement. Use whatever is the most cost effective and
densify the material in 8" lifts using a mechanical hand whacker up to the grade
you desire. The last lift or top material needs to be a material that is
recommended by the manufacturer of the liner. If you use a pea gravel as fill
then a sand used on top will just fall through. If you use soil it needs to be
free of any sharp objects like stick and stones. Pea gravel is almost self
compacting but holds lots of water between the pore spaces.-Chuck>
Leaking underneath a cement dam.. 9/6/07
I have a cement dam about 40 ft long and 8ft high...3' wide...a beautiful
acre pond behind fed by a small stream...this summer the stream dried up and all
the water leaked out gradually from underneath the cement dam somewhere....how
should I go about the repair ..please advise....Mike
<Mmm, w/o knowing more, I am inclined to encourage you to have a soils engineer
out to test the "overburden" of the material on the bottom, look about for areas
of leaking soil-wise... and possibly a structural engineer to survey the extant
dam... may need substantial re-doing... Have you taken a look/see where this
volume of water would likely go given a catastrophic dam failure? Bob Fenner>
Re: leaking underneath a cement dam..
9/7/07
Hi Bob...its not that big a deal as you seem it is...the spillway of the dam
leads down into a major river...
<Ah, good... a relief>
I believe the Dam is leaking underneath in one place....Will the treatment of
sodium bentonite probably solve my problem ??
<Is a good, semi-inexpensive worthwhile try IMO/E. Do dish it in well Bob
Fenner>
Faux rock repair around my
pool 9/2/07
I live in Las Vegas. The faux rock waterfall that is part of my swimming
pool has started to crack in various places. The calcium from the salt system
leaches into the cracks. The pool is 7 years old .The rocks are a typical
wire mesh/rebar/stamped & stained concrete variety. The cracks themselves are no
bigger than 3/32" wide, but some are as long as a foot or two.
Researching the net doesn't really address a specific technique....could you be
so kind as to advise me on a DIY???
respectfully,
Michael Best
<Mmm, yes... there is a Thoro Product called Water Plug that is a very
fast-setting mortar that actually expands when it cures (most cementatious
materials shrink)... I would get this, and an oxide to color it (take a sample
of your rock to a stucco company and they'll match it for you), mix the two
together dry... in small batches (the amount you can use in under five minutes).
Apply with a sharp trowel, wipe with a yellow sponge that is damp... Voila! Bob
Fenner>
Leaking pond
- help! 8/19/07
Hello,
<Good morrow to you>
Great posts under "Leaking pond - help!". I'm thinking the answer to my
pond problem is somewhere to be found...
<Perhaps>
We have a small (>200 gal) backyard pond (-24" deep) with recirculating
water fall. No fish... just for sound and looks.
<Okay>
The front pond wall is stucco over concrete block. The stucco-ed wall
had cracks and loose stucco has been removed.
The pond has a back wall of flat masonry stone. When filled... about 2/3
of the stone wall is under water and fortunately the stone wall side of
the pond does not leak.

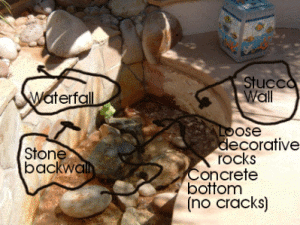

(See photos)
<I see these...>
I have read that a flexible liner is best for ponds but I do not want to
cover the stone portion.
<Mmmm>
Is there any way that a liner can be applied to the bottom and stucco
wall only? Leaving back rock wall exposed, except where the liner is
cemented to the corners...
<No, not really. Ideally we would have had this "conversation" before
your actual construction... and hence you would have used a liner behind
the rock work... it would have functioned as a "skin" a first waterproof
barrier... Neither stucco or "cement" are waterproof...>
If a partial liner covering (1 side wall with a liner) is not possible
then my only option is to resurface the stucco side that failed.
<Mmm... again... at this point, maybe applying a liner over the existing
work, re-applying new stone over this...>
A local "handyman" quoted $475 (labor only) to remove lose materials and
re-surface one wall. That seemed high.
<Not to me... but this would also fail in time...>
I read about a product called Mulasticoat? It appears to be a
do-it-yourself user-friendly product (no special tools, easy to apply).
<This too will likely not last for long...>
So... Advice please... Is it Liner or Re-coat? Do it myself ("average
common-sense-handy") or do I bite-the-bullet and have a professional do
it?
Thanks
Howard S
<IF I were still actually "in the biz" (instead of just an easy chatter
re) I would definitely ONLY do this job with applying a liner... as if
the existing basin were just a hole... To be sure of integrity. Bob
Fenner> |
|
 |
Underwater Paint Repair
8/5/07
We recently purchased a house with a pond which is +/- 1200 gal and about
30" deep. It is concrete lined and the liner was originally painted white.
<... really? What sort of liner material is this?>
The rebar was apparently close to the surface and is now rusting through in some
areas.
<Too typical... the shell wasn't waterproofed itself...>
We are concerned that his could lead to leaks and/or failure.
<You are wise here>
Is there some non toxic (we have several gold fish in the pond), underwater
paint I can use to contain the rust and re-coat the concrete.
<Mmm, yes... a few things... depending on how involved you want to get (money
and time-wise)...>
We have drained it once and really don't want to
do it again. We appreciate any thoughts. Thanks, Pete
<Please read here: http://wetwebmedia.com/PondSubWebIndex/thoroselart.htm
and the linked files above. Bob Fenner>
Problem with my large <earthen> fish pond
6/13/07
Dear sir
I have a large commercial fish pond, approximately 1 acre of sandy soil. The
depth is 30 feet. My problem is that the water level goes down drastically
during the winter time. My pond is situated on an agricultural land. The
leakage happens mostly during irrigation period. I live in Bangladesh. How
do I stop the water from seeping / receding out? Please help!
Regards
Tanvir
<Mmm, likely there is a local clay product that can be dished in (while this
basin is emptied of water) that will render an impermeable layer to the
bottom. Do check with your agricultural extension agent (or such) there re
"Bentonite" clays. Bob Fenner>
Re: problem with my large fish pond – 06/14/07
Thanx a million Bob Fenner, That was a great help
<Ah, good>
Keep up the good work at Wet Web Media
Tanvir
<Am trying my friend. BobF>
Fiberglass pond repair – 06/07/07
If you resurface a pond with fiberglass is it safe to put fish in it, or
will the fiberglass kill the fish
thank you Frances
<Needs to be cured... but can be done... Not the best material in almost all
cases... unless the original construct was/is fiberglass and resin... Please
read here: http://www.wetwebmedia.com/PondSubWebIndex/Pond%20Sub%20Web.htm
Scroll down to the tray on "Repair".
Bob Fenner>
|
Emailing: 100_6814,... Pond repair 5/23/07
Mr. Fenner,
<Jack>

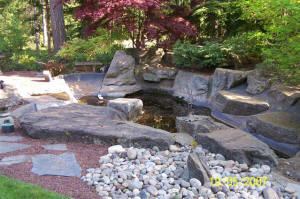

I am seeking advice regarding potential repair of a koi pond/waterfall
damaged by a tree strike. The ponds are cast-in place concrete
reinforced with wire mesh and reportedly constructed over a liner.
<Mmm, you should be able to find evidence of this one way or t'other by
digging a bit around the outside of the basins... But/and I am doubtful
that
this is the case... given the large rocks, their placement>
The owner has employed several types of repair schemes... topical
elastomeric and topical epoxy without success.
<Yes... I would not encourage these avenues.>
There is likely some soil consolidation beneath the areas of fractures
as these areas present a noticeably different sound when tapped with a
steel rod. However, there is no evidence that the soils in general are
unstable.
If this were your water feature how would you repair it, if that is an
option? Thanks for your help.
Best regards,
Jack Fingold
<The best, really only secure means is to treat the existing basin/s as
holes presently... cut, fit a liner (Please read here re the various
choices:
http://www.wetwebmedia.com/PondSubWebIndex/linerspdconst.htm
and the linked files above), adhering the edge to the highest water line
(yes, unfortunately, over the submerged areas of the gorgeous rockwork),
and applying a goodly amount of adherent (choice depends on the liner
chosen) at the margin... and going through, completing the work as if
the new liner were laid in against original cut/grade... with wire,
shotcrete or similar, color... Bob Fenner> |
|
  |
|
|
|
  |
Need to seal pool 5/10/07
Pool
25 meters long - 15 meters wide - up to 7 meters deep if we could fill it.
We need to find a way to seal our concrete and rock swimming pool/pond/lake.
This pool was very carefully constructed out of rocks
<... that penetrate the basin...>
and concrete and we expected it to leak BUT we did not expect that our 20+
gallons per minute pump would not even be able to half fill it before the pump
could not keep up with the leaks.
<And wonder what the disposition of the missing water is...>
We have since emptied it and meticulously grouted between all the rocks
<... not easily done...>
with a 50/50 fine sand cement mix which helped but and we got it a little fuller
but still not good enough for the pump to stay ahead of the leaks.
We don't want to cover the rocks if we can avoid it and we are looking for a
product that will penetrate and make it considerably more watertight.
<There are hydraulic cementacious products (that expand rather than contract
when curing/cured)...>
The pool is in Honduras, which is sub tropical and we are therefore not
concerned about the effects of temperature changes during the year. It is always
shorts and t-shirt weather here. 12 hour days all year round and warm to hot
ambient temperature.
We have a permanent water supply from our shallow well right beside the pool and
only need to pump a 24 foot head to fill the pool completely (if we slow down
the leaks sufficiently).
Any suggestions, ideas, help and/or assistance will be most appreciated.
<Ask about re companies in the area... perhaps ones that work on engineering,
building the roads, large concrete structures like buildings... e.g. "Water
Plug" by Thoro Products would work here... but expensive...>
Our main project here is a school for poor children and this pool has been built
for the specific purpose of also teaching the children to swim. We can also
arrange tax deductions for any products or portion of products that you might
like to donate if you are so inclined.
Looking forward to hearing from you
Regards
Ben Udy
project director
Cofradia's Bilingual School
<www.cofradiaschool.com>
<Bob Fenner>
Sealing EPDM liner to cement... possible, but messy 2/19/07
Hi, Bob
<Eric>
I am redirecting an existing waterfall through a narrow gap between two very
large hard to move boulders into a new creek, so I need to link between two
sections of EPDM with concrete between them (concrete to serve as "pond liner"
within the narrow 3"-4" gap between boulders and extend several inches out in
both directions. I do not want liner to be visible in gap between boulders. Can
I bond the liner to the smooth cement with asphalt emulsion UNDER the water
level?
<Mmm... possibly... a real mess though... wear your absolutely worst clothes...
very long, up to the elbow and beyond... "ladies" dishwashing gloves or similar
for chemical handling...>
If not, what's the best adhesive?
<This really is (amongst what is widely available) the best material... there
are a few formulations... You want the very "viscous" material... likely labeled
for roof patching...>
Or alternatively, if I were able to dress the EPDM thru the crack between the
boulders, how can I seal it to the rock BELOW the water line?
<A VERY good idea to do this at the "low water level" time of the year... BEST
by far to divert or dam the water for a day...>
Asphalt emulsion , construction adhesive calk, RTV calk, polyester resin???
<Only the first will work IMO>
If I go the cement route, is there risk the bond between cement liner and the
boulders will crack from settling or whatever creating a leak?
<Always, yes... best to fit this with large, well-shaped rock... and fill the
gap (best to actually make a "form" first, and build to fit closely OUTSIDE the
system), with a very fast settling cementacious product like Thoro's "Water
Plug"...>
Perhaps I should cast in a 1/2" gap between the concrete and boulders on each
side and calk it with flexible sealant like that used on swimming pool decks?
<Bingo! A wise choice>
Thanks,
Eric
<Welcome, Bob Fenner>
Repairing fiberglass waterfall - 12/04/06
I am trying to repair a prefab fiberglass waterfall. There are no cracks in
it. It has lost its original coloring as it is nearly 6 years old.
<Yes...>
We have about 7 fish and I don't want to use anything that will harm them.
Do you know if regular colored grout can be used?
<Do know, and no, cannot be used>
Thanks for any info you could send my way.
<A repair can be made if the original fiberglass/resin isn't too badly
delaminated, and the area behind the break is supported well enough (not too
flexible)... with fiberglass cloth (look for in determinate widths), color/ing
if you'd like, laminating/hot-coat resin and hardener, oh and a "throw-away"
small brush to apply it. The falls must be dry, clean, and I'd roughen up the
surface with a low grit sandpaper of sorts... do wear gloves, long-sleeve shirt
and avoid the bits of fiberglass removed... let cure... Bob Fenner>
<<Bob, as I read this letter, I thought he was simply trying to restore
coloration to an aged fiberglass structure, not repair a structural piece. I was
going to try my hand at a reply, but you beat me to it *grin* My suggestion was
to be to dry the waterfall surface and try a buffing compound such as 3M
Imperial Rubbing Compound to bring back the coloration... Oftentimes oxidation
of this sort is simply buildup on the surface of the fiberglass and will buff
right out.. I can't tell you how many lake-worn boats I've brought back to a
showroom shine with some buffing compound and some elbow grease. Hope this
helps! -JustinN>>
>Yikes... do see this as you state (now)... Will re-respond... My input remains
the same excepting the use of the fiberglass cloth, tape... roughen up the
surface, re-coat with colored laminating (not casting) resin and
moderate/measured amount of MEK hardener. Thank you Justin. BobF<
>>No problem, Bob, its what I appreciate most about the community here: the
group think concept. Ideas are better thought out when you have more eyes
looking at problems, I only ask for the same if I have any such similar
incidents *grin*, Subsequently, while on the subject of refinishing a fiberglass
structure as such, what is your opinion of one-part epoxy paints, such as those
used for jet skis? These were some of the more readily accessible, easy to use,
and cheap types of paint I dealt with in my time in the body work industry, and
always gave very nice results. Would you feel them to be adequate for such a
situation as described above? -JustinN<<
<Mmm, likely so... given very thorough prep... Part of the reason I like the
"hot coat" surfboard/use resins... they're much more "sticky", forgiving.
Cheers, BobF>
Lining a concrete pond 11/18/06
Hello WWM Crew,
<Brian>
Warm greetings from Sydney Australia where we are just entering summer and
enjoying the worst drought in a thousand years (I am not sure how they worked
that out as records only go back about 150 years!).
<And such even numbers... reminds one of "budget" numbers from simple servants
in the U.S.>
I am very impressed with your extensive knowledge you share with the Web
community and thank you for that. I have a problem I was hoping you could
assist with.
<Will try>
I have converted an old sunken garden into a pond by rendering it and covering
the render with a two-part waterproof paint the name of which escapes me. It is
about 10 feet by 8 feet and about 3 feet deep. It is a very happy home for
seven goldfish and a whole bunch of vegetation. This worked fine for 8 to 10
years but has recently developed a leak. I found what I thought was the leak,
scratched it out and filled with a silicon glue (a Selleys product) which seemed
to slow the leak down but didn't stop it. I suspect there are roots from my
neighbor's pine trees involved.
<Very common>
I have decided to line the existing concrete pond with a butyl rubber membrane
and although I have scoured your excellent website I can't seem to find an
answer to my questions.
Can you comment on my decision to line the pond?
<Is excellent... the roots will not penetrate this material>
How should I attach the liner to the concrete?
<Best to fashion a "lip" of sorts to hand the membrane in, pinch it to... and
cap this with some sort of masonry with thin set mortar>
How should I deal with the flaps produced when folding into the corners of the
pond?
<Try to "fold them in, leaving a bit loose at the top... though all will stretch
and largely lay flat on filling>
Thanks in advance,
Brian Lee
<Welcome my friend down under. Bob Fenner>
Fixing pond leaks 9/5/06
Hi, I have a small outdoor pond that is old and cement. It
has cracks.
What filler can I use under water and wet that won't kill the plants or
fish?
Geralin
<... No filler... need to remove all, repair... Please read here:
http://www.wetwebmedia.com/PondSubWebIndex/concrepart.htm
and the linked files above. Bob Fenner>
Replacing Pond Liner:- What to do with existing fish? 4/18/06
To replace my pond liner I need to remove two 14 Inch Koi and 12 others
sized 5 to 8 inches. I understand they will have to be put into a holding tank
for about a week. Is there any rule I could use to calculate how much water
would be need to keep them alive for this period without any aeration
system. If not what can you suggest.
Ken Brown
<Mmm, the bigger the better... and covered! They can/will jump... out. And don't
feed at all, really... but do need circulation, aeration... perhaps just a large
"kiddie wading pool" (depth not important if protected from much of the elements
(to reduce diurnal changes). Please see here:
http://www.wetwebmedia.com/PondSubWebIndex/lnrspdabvh2o.htm
and the linked files at top. Bob Fenner>
Convert pool 4/4/06
Hello,
<Hi there>
We are searching for help concerning my ailing mother's
pool. She is in poor health and needs to sell her home which has a
neglected underground pool with a compromised water pump. Unfortunately,
she lives in Texas while I live in California. Therefore, I have very
little time in Texas to complete this project (approximately 3 weeks), and
place the house on the market for her. Do you have any ideas that can
maximize my time and minimize the costs spent on this project? Any
suggestions you may have will be greatly appreciated. With my utmost
thanks.
<Can be done. Please see here:
http://wetwebmedia.com/PondSubWebIndex/poolpdconvart.htm
and the linked files above. Bob Fenner>
Sincerely,
Dawna Kostrzewa
Pond repair - 03/13/2006
Good morning
The water feature in our new house which of course is about 20 years old,
has not been used for quite some time. Two of the three basins actually have
been converted into flower beds.
The previous owner had apparently attempted to epoxy seal some areas, they
are covered with some type off shiny but brittle materials that doesn't adhere
well to their underlying surface.
Thoroseal or liner, that is probably the question.
Thanks for your input,
Michael
<Please read here:
http://wetwebmedia.com/PondSubWebIndex/concrepart.htm
and the files linked above.
You will likely want to consider building over the existing basin/s, liner...
Bob Fenner>
Sealing edges of rubber liner fix 12/21/05
Hi,
I live in NC and purchased 10 beautiful acres with a 50 year old, 1
acre pond on it. It is filled with runoff water. When It rains it fills
up nicely , then after a few days the water level drops about 2-3 feet.
I see where the water drains out on the backside of the 20 ft. wide dam.
Large trees sat on top of the dam and spillway which I recently cut
down. I do know the reason for the leaking is the large caverns these
roots have caused. I can't afford to redo the whole pond and a farmer
suggested laying a piece of 10' X 100' rubber liner across the dam area
and down below the surface a few feet to stop leakage or cover holes. My
question is, once I put this down and secure it with rocks here and
there, won't water just seep under it around the edges and the leaking
will continue just as bad as before?
<Likely so, yes>
Do you think this might slow it down to a natural leakage pace?
<Doubtful...>
By the way I do know cutting down the large trees will cause the roots
to die and make more ways for water to escape, but the amount of leaves
falling into the pond each year is tremendous and trees and root systems
were hanging out over pond ready to one day fall in. I'm sure the
leakage and/or holes is below the root balls sticking out. Please help,
the few fish remaining need some deeper water to survive.
Becky
<Mmm, I suggest you "let your fingers do the walking"... have some local
contractors (likely to be found under "landscaping" in the Yellow Page
Directory)... and have them tell you your options. Maybe a clay-based
material can be dished into your "over-burden" (the unconsolidated
material on the pond bottom), or this overlain over the base of the
liner on the dam... Bob Fenner> sp;
How to keep water in my pond 9/13/05
Hi
<Hello there>
I recently completed my pond project and tested it with water the other day.
I laid about a 2 to 3 inches of concrete, spray painted it and then sealed
it with 2 gallons of Behr concrete sealer. I let the sealer dry and then
filled up the pond. It drained completely over night.
<Oops!>
Obviously the water drained
through the concrete. I am looking for a way to seal my pond so that the
water stays in and doesn't drain out. Can you give me any ideas.
Thank you
Rick
California
<There are a few approaches here... at this juncture you might try a different
sealant... Please read here:
http://www.wetwebmedia.com/PondSubWebIndex/thoroselart.htm
and the linked files above.
Ultimately, you might want to go the route of applying a liner in this basin...
ostensibly treating it as a hole... You will find articles, FAQs files on the
WWM site, pond subweb re. Cheers, Bob Fenner>
Pond Leakage 8/31/05
Hello,
<Hi there>
I have a small pond that was constructed with a concrete interior. The pond is
semi-circular with a radius of approx 7 ft. I have a constant leakage that
appears on the surrounding patio area. I have utilized a swimming pool paint
without success. Understand that there are some paintable products on the
market especially made for sealing on concrete surfaces that are completely
submerged. Please advise your recommendations for such products and a potential
source. I am located in Jacksonville, Fl. Thanks!!!
<Please read here re:
http://www.wetwebmedia.com/PondSubWebIndex/thoroselart.htm
and the linked files at top. Bob Fenner>
Leaking pond - am I hurting my fish refilling so often? 8/28/05
Hi,
<Hello there>
We've cleaned out and restocked a pond in our new house. It's approx. 10feet
by 5feet, and 3feet deep. It has a top level which waterfalls down to the
larger lower level. We've put in a pump for the waterfall and a filter, loads of
plants and have 2 happy little goldfish.
Only problem is we have a slow leak in the liner somewhere as the outer wall
(stone and mortar) is constantly wet and we're losing 3 - 4 inches a week.
<Mmm... perhaps capillatory in nature... hard to fix...>
We've tried emptying the pond and found a tiny hole, which we repaired with a
cycle repair kit on the advice of our local water centre. But either that
didn't work or there's more holes!
<Or just a "damp" area twixt the liner and up...>
Anyway, time is short at the mo due to work, so we've just been refilling every
few days and as there's no time to reline it this year, that's our only option
- but is it harming my fish?????
<Mmm, not likely... in fact, replacing 3-4 inches per week of depth in a volume
of this size is likely very helpful>
Very quick 2nd question, sorry - one of my goldfish seems to chase the other
smaller one a lot.
<Happens>
At first I thought they were playing, but today I noticed
light patches on the rear sides of the one that's being chased, where the
nose of the chaser rubs his skin. Is this normal behaviour, are they fighting,
playing or even mating???
<Mostly the latter, the middle as practice... I would add a few more goldfish to
diffuse the aggression here>
Thanks, Allison Franklin (UK novice pond keeper)
<Welcome, Bob Fenner, old-timer>
Have you heard of a powdered pond liner 8/17/05
I would like to know what this product is and how to use it. If you have any
information on it. I would appreciate it.
Thanks,
Sylvia
<Mmm, there are materials like powdered lime, clays that are sometimes (though
less frequently as time goes by) turned into existing soil to make a water-proof
or more water-proof barrier... What is the application here? Something very
large? Bob Fenner>
Re: Have you heard of a powdered pond liner 8/20/05
This stuff looks like sugar granules. You just put it in the pond and
circulate the water. And it stops the leaks. I put it in the pond today and the
water
looks like syrup. I sure hope it settles.
Sylvia
<Yikes, I sure hope you read the instructions, precautions. Bob Fenner>
Cement Mortar
You recommended that cement mortar be used to construct ponds and falls.
Unfortunately I didn't and maybe you can advise what to do.
My questions are:
1) Can I apply a coat of cement mortar over DRYLOK? I made my pond with
Quikrete Portland Mortar mix and it leaked, so I coated it with two coats of
water-based UGL DRYLOK.
<Mmm, well, the new cement "plaster" coat will have to be thick "enough"...
and I would add a white-glue binder to it... and I would use Dry Lok's
"Etch" product per their instructions... it can be done, but... is there a
reason?>
2) Are the Plastic Mortar drying characteristics similar to regular Portland
mortar? Specifically, minimal shrinkage when drying?
<There is some to be expected, unfortunately... I would seek out the better
"plastic" cements here... they have far less alkalinity, shrinkage...>
Any suggestions are welcome. I only wish I had read your website before
building my pond.
Thanks in advance, Ed
<Mmm, am wondering what it is you hope to gain by coating over the Dry Lok...
is it to add a color... if so, there are other ways... Is it because the
basin/s are continuing to leak? Bob Fenner>
Cement Mortar, Follow-up
Bob, thank you for your prompt response.
Yes, basin is still leaking. Frustrating.
<Yes... have been here. No fun>
I waited a week after applying the second coat of DryLok dry before
filling the pond and touched up any areas that looked suspect. First
filling of pond was done 6/22 (2 days ago) and I am presently waiting to
determine at what water level it stops leaking.
I did add some color to the DryLok, a light brown, but the pond, I
think, would look better if it was a darker green or umber color. It
seems too pristine at present. Opinion welcome.
<Will turn to darker anyway, so I agree with you re coloring all in the
process... Please do read on WWM re such repairs... It might be best to
bite the proverbial bullet here and treat what you presently have as a
mere "hole in the ground" and build a new pond... with liner,
reinforcing mesh, concrete... over it. Bob Fenner>
...Ed Sealer for stone pond
I need a product to seal the inside of my fish pond that was constructed out
of mortar and stone. I have tried Hecht clear sealer and also caulking that
is fish safe but seems as though 3 coats don't work and caulking is coming
loose. Any suggestions?
<Yes... though not likely what you'd like to hear. Unfortunately there just are
no sealers per se that will make a "good", permanent waterproof seal twixt a
cementatious wall and stone... the differing matter has dissimilar properties...
expansion for one. What you are faced with are a few possibilities... the most
drastic of which will/would grant you the surest repair... This is rebuilding
the pond basin/s taking out the rock, laying in a liner (see WWM re) placing the
rock (on carpet or concrete if very large/heavy or sharp) and re-concreting...
Otherwise, a new shell can be constructed over the existing, including over the
rock a bit beyond the water level... Or leaving the water level below this
currently... Or... the worst, converting the pond into something else. Sorry to
be the bearer of bad news here, but as you'll see from reading through WWM, I/we
designed, installed and tried to repair many such water effects over the
years... these are your options. Bob Fenner>
Leaky Pond = Heartache
Dear Bob,
<<Marina in his stead today.>>
My man-made rock pond has a huge leak which we can't find. We drained the pond and I would like to close it.
<<I understand.>>
There are huge boulders and we would need a crane to hoist them for disposal.
<<Or, create a rock garden? Lovely, with lichens growing, mosses and ferns tucked in here and there, small flowering plants, can be lovely.>>
My question is: Since this pond is abutting my patio I would like to just cut out the liner and fill in with soil and landscape around the boulders; however, I keep thinking this hole approx. 15' x 10' will end up being a swamp and a breeding ground for
mosquitoes.
<<As one who mosquitoes find extraordinarily tasty, I am quite sympathetic to this fear.>>
Adjacent to this pond is a larger pond which seems to be intact which I thought I would keep.
<<Are these ponds tied together in any way? Is it possible to separate them (I'm talking about no water getting from the pond you're going to keep to the pond you're going to drain)?>>
My husband maintained this double tiered natural rock pond for 18 years. We rebuilt it once because of leakage and can't afford to do it again. My husband suffered 4 strokes and is completely bedridden and I am faced with this dilemma.
<<I'm sorry to read this, I understand how troubling this is to you. I hope therapy is helpful for him, you.>>
My friends and family haven't a clue how to help me. I don't have anyone who really cares enough about my problem to help me so I must figure it out for myself.
<<Well, if they're physically fit they can certainly help you rip out at least the bottom portion of the liner. After that, if you can line the bottom with gravel for drainage. That should help tremendously in preventing the swamp from forming. If all are unable, then I would suggest trying to find a service or handyman, laborer who can do this for you.>>
My plan is to cut out the liner letting the boulders intact and just filling it in with soil (maybe some sand) and then letting it settle for the season adding more as needed and then
replanting with ground cover.
<<Yes, should work, but use a layer of gravel to be sure of proper drainage. Or, when the liner is out, fill partially with water and see how long it takes to drain. If the soil underneath is very compacted, then you could end up with a pond whether you want to or not (this would rather negate the leak at that point, yes?). If this is the case, then mosquito-fish and/or drab colored goldfish would be my next suggestion.>>
Right now we have had several days of thunderstorms and it has about a foot of water in it. I know I can't leave this stagnant water in so I need to do something quickly.
<<Quick fix is those fish, feeder goldfishes, or even feeder guppies would work in preventing the mosquitoes (I just discovered that the bed of my father-in-law's truck is where our plague has been developing) <scratches another bite>.>>
Any suggestions you might have would be a comfort to me.
Serenity,
Lorie Shott
<<Lorie, if that water doesn't drain, then I would surmise that your leak may not be too problematic. Of course, I cannot say this with any degree of certainty, not knowing the layout of your property, pond, etc. Sears (and others, but I'm tired of Home Despot) does sell sump pumps, if you need to get this drained quickly then I would suggest of one of these (though the fish are decidedly
cheaper, don't have to be plugged in).
Then, when the liner is gone, break up the soil, put in a layer of gravel (probably 6" or so should do). You may wish to contain the gravel by placing one of those weed liners on top (shade cloth would do the trick, too). Then sand, soil, et voila. It's time and labor intensive, that's where your family and friends can really help. After that, I would keep track of how long it takes for the soil to drain, and plant accordingly. Best of luck to you, your husband. Marina>> Leaky Pond = Heartache? No, Leaky Pond = Garden, Answers Found
Oh My God!
Thank you ever so much... Your suggestions are heaven sent! You have reassured me that I can handle this.
<<I am very glad, and happy to know I have reassured you, helped in any way I can. I could see that the potential for this being a great source of stress, and you need your energy to be focused on you and your husband, not a mosquito factory.>>
Would never have thought of putting the gravel down first and what an excellent thought of putting in the goldfish to help with the
mosquitoes.
<<Ah, I come from a land that is dry, yet has no drainage.>>
I can transfer some from the adjacent pond.
<<I bet if they've been in there even part of the season some have yet found love and made you some little fish-babies.>>
And, yes... the upper tiered pond is working well and not draining into the lower one.
<<Perfection.>>
I have transferred the filter from the lower pond into it and it seems to be intact and running well with the waterfall operating and nothing going into the lower pond (I must just be careful to keep it at a pre-determined water level).
<<My mother and I are fans of using a stick to measure liquids in large areas. One of my great aunts still has one in the gas tank of one of her old cars.>>
You have certainly made my holiday and I can stop worrying so.
<<Well, THAT has certainly mine!>>
Fortunately, my husband has all his faculties and wisdom to boot. We are both close to 70 years young and when I told him yesterday how worried I am about the pond he woke me up by stating "you will always have problems, that's "life".... what you want is "heaven". That put this whole ordeal into perspective.
<<Very wise, indeed. I have a sister who has always reminded me to keep things in perspective (and decide what my priorities are) *first*. I am happy that your husband can still communicate, as it's been my experience that the ability to communicate means more than anything else any injury to brain or body can take away.>>
Thank you soooooo very very much....you have been extremely helpful and I feel 100% reassured that I can now proceed with a plan.
Serenity,
Lorie Shott
Lebanon, Pa.
<<Lorie, as I mentioned above, I am very pleased that I have helped you, to know to what degree I've helped pleases me even more. Honestly, it's helping folks such as yourself, with a real need, that makes doing this all worth it. Please consider me your friend. Marina>> | |
|
